Description

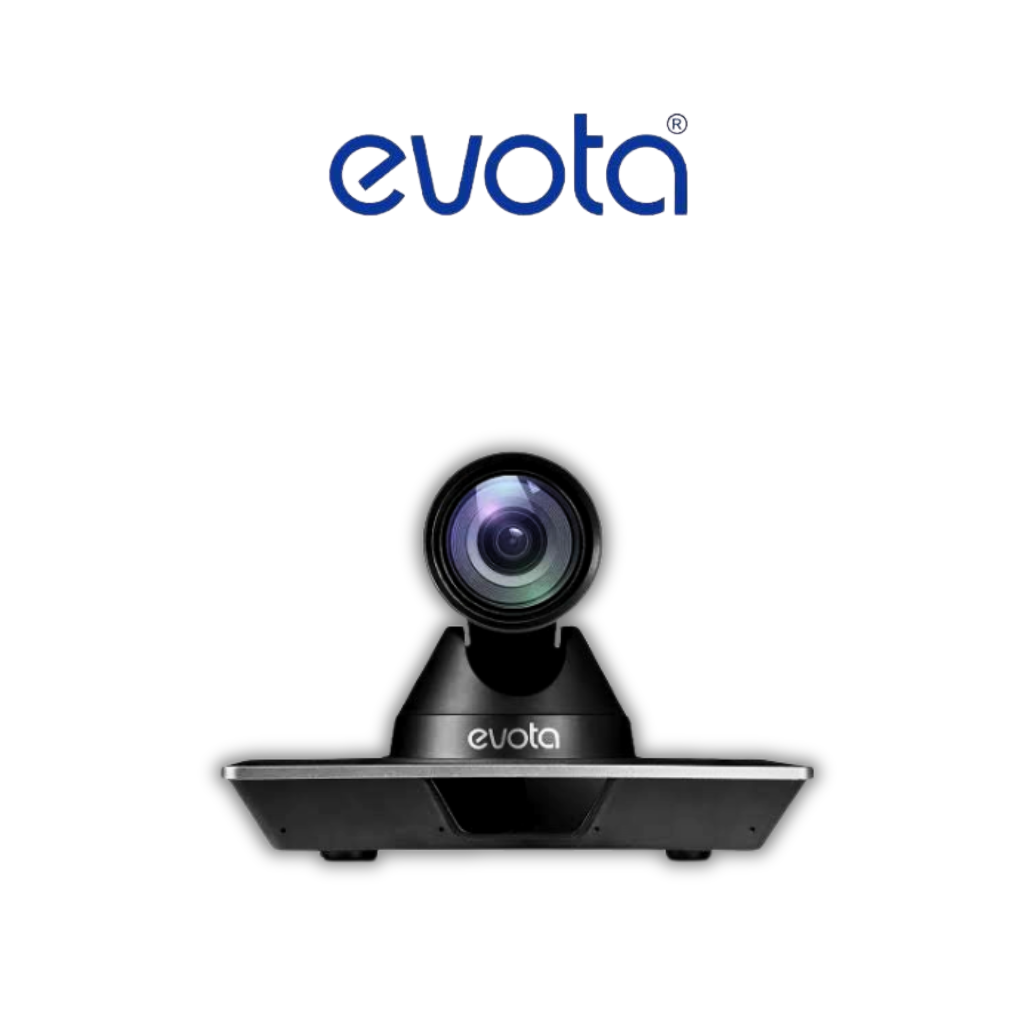

Capture every angle in stunning clarity with the LS-PTZ-001 4K UHD PTZ Camera — built for classrooms, conferencing, and live broadcasts. AI-powered human shape tracking keeps the subject smoothly in focus, while the UHD CMOS sensor delivers crisp 4K (3840×2160) video with excellent low-light clarity thanks to advanced 2D and 3D noise reduction.
It supports HDMI 1.4b, USB, LAN, and NDI|HX2 for low-latency, plug-and-play transmission, and multiple remote-control options — RS232, RS485, USB, and network control — make it flexible across almost any setup.
Key Features
- 4K UHD resolution with 20x optical zoom
- AI-powered human shape tracking for smooth auto-framing
- 2D & 3D digital noise reduction for clear low-light video
- 170° pan angle, 30°–90° tilt angle, auto backlight support
- NDI|HX2 for low-latency, high-quality streaming
- USB Type-C, HDMI, and LAN connectivity
- Up to 255 presets with 0.1° precision switching
Full Specifications
| Camera | |
| Sensor | 1/8″ CMOS, effective pixels 8.42 megapixels |
| Zoom | 20x optical, 16x digital |
| Field of View | Horizontal 60°, Vertical 35° |
| Min. Illumination | 0.5 lux @ F1.8, AGC ON |
| Noise Reduction | 2D & 3D Digital Noise Reduction |
| Pan / Tilt | |
| Pan Angle | ±170° |
| Tilt Angle | -30° to +90° |
| Preset Positions | Up to 255, with 0.1° accuracy |
| Video | |
| Video Compression | H.264 / MJPEG, supports NDI|HX2 |
| Max Resolution | 4K (3840×2160) up to 30fps |
| Frame Rate | 50Hz: up to 25fps / 60Hz: up to 30fps |
| Connectivity | |
| USB | 1× USB 3.0 Type-C |
| HDMI Output | 1× HDMI 1.4b |
| Network | 1× 10M/100M adaptive Ethernet |
| Audio | 1× Line In (3.5mm jack) |
| Control | RS485 IN, RS232 IN — VISCA / Pelco-D / Pelco-P protocol |
| Power Interface | DC IN 12V jack, or PoE (802.3af) |
| System Compatibility | |
| Supported OS | Windows 7+, macOS 10.5+, Linux 2.46+, Android (UVC drivers) |
| Power & Physical | |
| Input Voltage / Current | DC 8V / 1.0A (max) |
| Power Consumption | 7.8W (max) |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 60°C |
| Net Weight | 1.42 kg |
