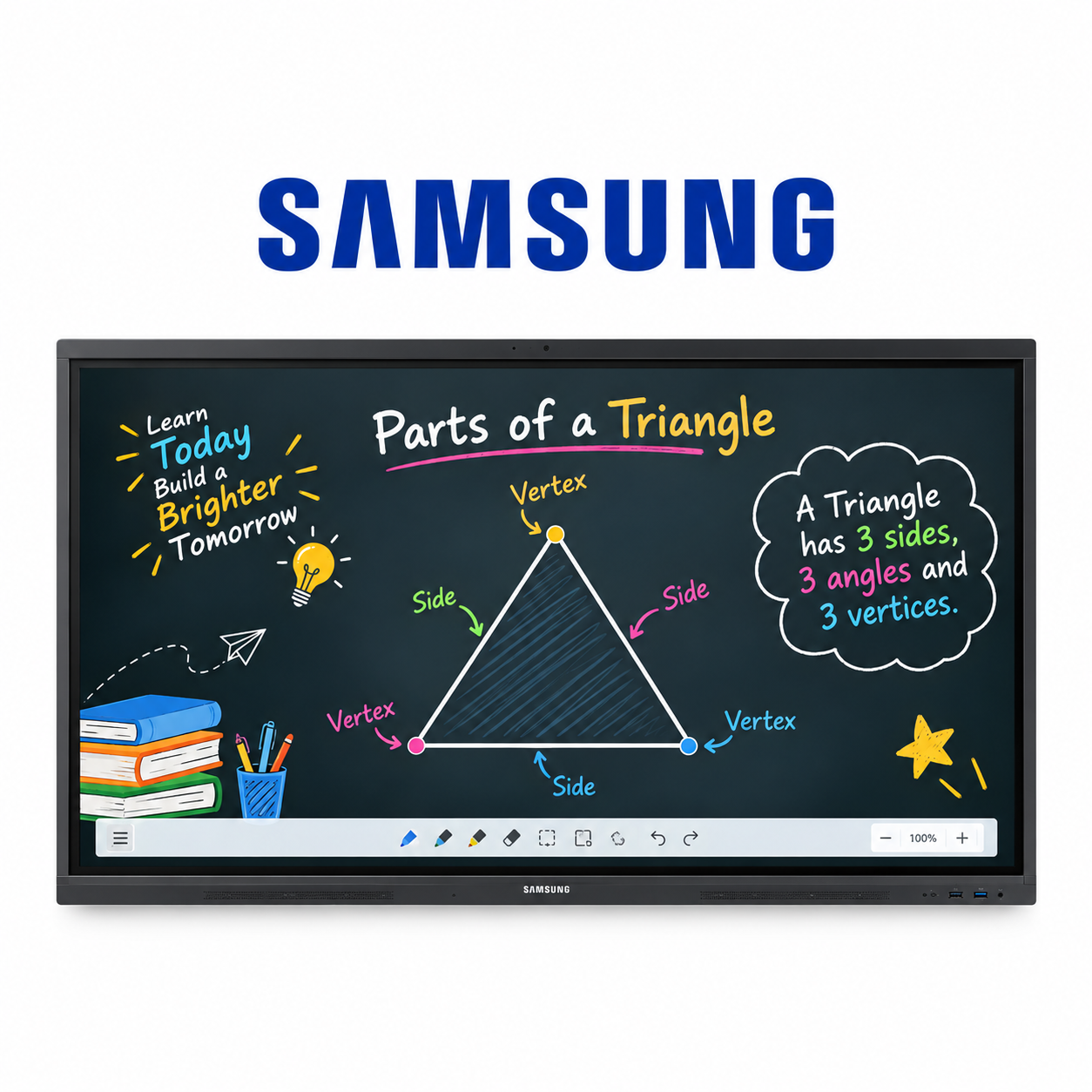

Samsung WAF Series Interactive Display

₹50,000.00

Samsung's premium Android-powered interactive display with 4K UHD resolution, 40-point IR touch, and EDLA-certified Google Play support. Features Split Note mode for up to 4 simultaneous users, always-on Annotation button, and remote device management. Available in 65", 75", and 86" — built for smart classrooms and modern collaborative learning spaces.

Estimate delivery times: 3-5 Business Days.

Use code "WELCOME15" for discount 15% on your first order.

Size

Clear

Description

The Samsung WAF Series Interactive Display is a premium Android-powered smart panel built for modern classrooms and collaborative learning environments. Powered by Android 14 with EDLA Certification and full Google Play support, the WAF delivers 4K resolution, 40-point IR touch, and intelligent AI processing on a powerful octa-core CPU. Available in 65″, 75″, and 86″ sizes, it features Samsung’s Split Note mode for up to 4 simultaneous student users, always-visible Annotation button, front-facing quick access controls, and a remote device management solution — creating captivating, customizable educational experiences.

Key Features

4K UHD (3840 × 2160) display with 400 cd/m² brightness and 178° viewing angle
40-point IR multi-touch with passive pen support (3mm front, 8mm back)
Android 14 with EDLA Certification and Google Play Store
Powerful octa-core CPU (A73 × 4 + A53 × 4), 8GB RAM, 64GB storage
Split Note mode — up to 4 students can write simultaneously in their own zones
Always-visible Annotation button for notes over any content on screen
Front-facing quick access physical controls for common functions
Remote Device Management Solution (DMS) — cloud & on-prem options
Built-in dual 15W speakers and Wi-Fi 5 (802.11ac)
OPS slot support for optional Windows PC module
Mohs 5 hardness protection glass with 25% anti-glare haze
Pre-installed apps: Chrome, YouTube, Google Drive, Note, Screenshare, Finder
ENERGY STAR certified with 0.5W standby power

Size Comparison

65 inch

Power (Max)286 W

Weight (Set)35.2 kg

VESA Mount600 × 400

75 inch

Power (Max)333 W

Weight (Set)48.9 kg

VESA Mount800 × 400

86 inch

Power (Max)493 W

Weight (Set)62.5 kg

VESA Mount800 × 600

Full Specifications

Display / Panel

Screen Sizes65″ / 75″ / 86″

Native Resolution3840 × 2160 (4K UHD)

Panel TypeDirect, 60Hz

Brightness400 cd/m² (Typ.)

Contrast Ratio1,200:1 (Typ.)

Dynamic Contrast Ratio4,000:1

Viewing Angle178° / 178°

Response Time8 ms (G-to-G)

Haze25%

OrientationLandscape only

Touch

Touch TypeIR (Infrared)

Touch Points40 points

Touch Pen TypePassive Pen

Object RecognitionFront Pen: 3mm / Back Pen: 8mm / Eraser: ≥9cm²

Minimum Recognition2 mm

Touch Response Time≤5 ms

Drawing Latency≤45 ms

Glass Thickness3.2T

Glass HardnessMohs 5

Android System

Operating SystemAndroid 14 (EDLA Certified, Google Play supported)

ProcessorA73 × 4 + A53 × 4 (Octa-core)

RAM8 GB

Storage64 GB

Pre-installed AppsPlay Store, Chrome, YouTube, Google Drive, Note, Screenshare, Finder

WebRTCYes

Screen ShareYes

Connectivity — Input

VideoHDMI × 2 (Rear 1, Front 1), USB-C (Front), OPS

Audio1 × Stereo Mini Jack

USB4 × USB (2.0 × 2, 3.0 × 2)

Connectivity — Output & Control

Video OutHDMI Out (Rear)

Audio Out1 × Stereo Mini Jack

Touch Out2 (Front 1, Rear 1)

External ControlTouch Input, RS232C In, RJ45 In

Internal SensorEco Sensor

Network

Bluetooth / Wi-FiYes (Keyboard / Mouse support)

Wi-Fi ProtocolWi-Fi 5 (802.11ac)

Ethernet Speed1 Gbps

SecurityWFA / WPA / WPA2 / WPA3 personal / WPS 2.0

Audio & Power

Speakers15W × 2 (Built-in)

Power SupplyAC 100-240V, 50/60Hz (Internal)

Power Consumption (Max)286W (65″) / 333W (75″) / 493W (86″)

Power Consumption (Typ.)172W (65″) / 215W (75″) / 264W (86″)

Standby Power0.5 W

Power Cable Length3 m

Mechanical

Bezel ColorBlack

Weight (Set)35.2 kg (65″) / 48.9 kg (75″) / 62.5 kg (86″)

Dimensions 65″1482.1 × 891.4 × 87.7 mm

Dimensions 75″1716.5 × 1031.8 × 87.7 mm

Dimensions 86″1961.8 × 1170 × 87.7 mm

VESA Mount600×400 (65″) / 800×400 (75″) / 800×600 (86″)

Protection GlassYes

Stand TypeWall Mount

Media Player OptionOPS Slot Support

Environment & Certification

Operating Temperature0°C to 40°C

Operating Humidity10% to 90%

SafetyIEC62368-1 / UL62368-1 / IEC60950-1 / IS13252

EMCFCC CFR Title 47 Part 15 Subpart B / EN55032:2015+A11:2020

EnvironmentENERGY STAR

In the Box

Included AccessoriesPower Cord, Remote Controller, HDMI Cable, Touch Pen (2 pcs, Black), USB Cable, Warranty / QSG

Optional (Stand / Mount)3rd party stand / mount supported via VESA

Size	65, 75, 86
